SPECIFICATIONS

Brand Name: U'King

Certification: CE,FCC,RoHS

High-concerned chemical: none

Installation Method: self-contained

Is Batteries Included: Yes

Is Bulbs Included: Yes

Is Smart Device: no

IsStageLightingEffect'sEquipmentorAccessories: Yes

Item Type: Stage Lighting Effect

Lamp beads: 3PCS three-in-one high-power lamp beads

Luminous Flux: 2000-82000

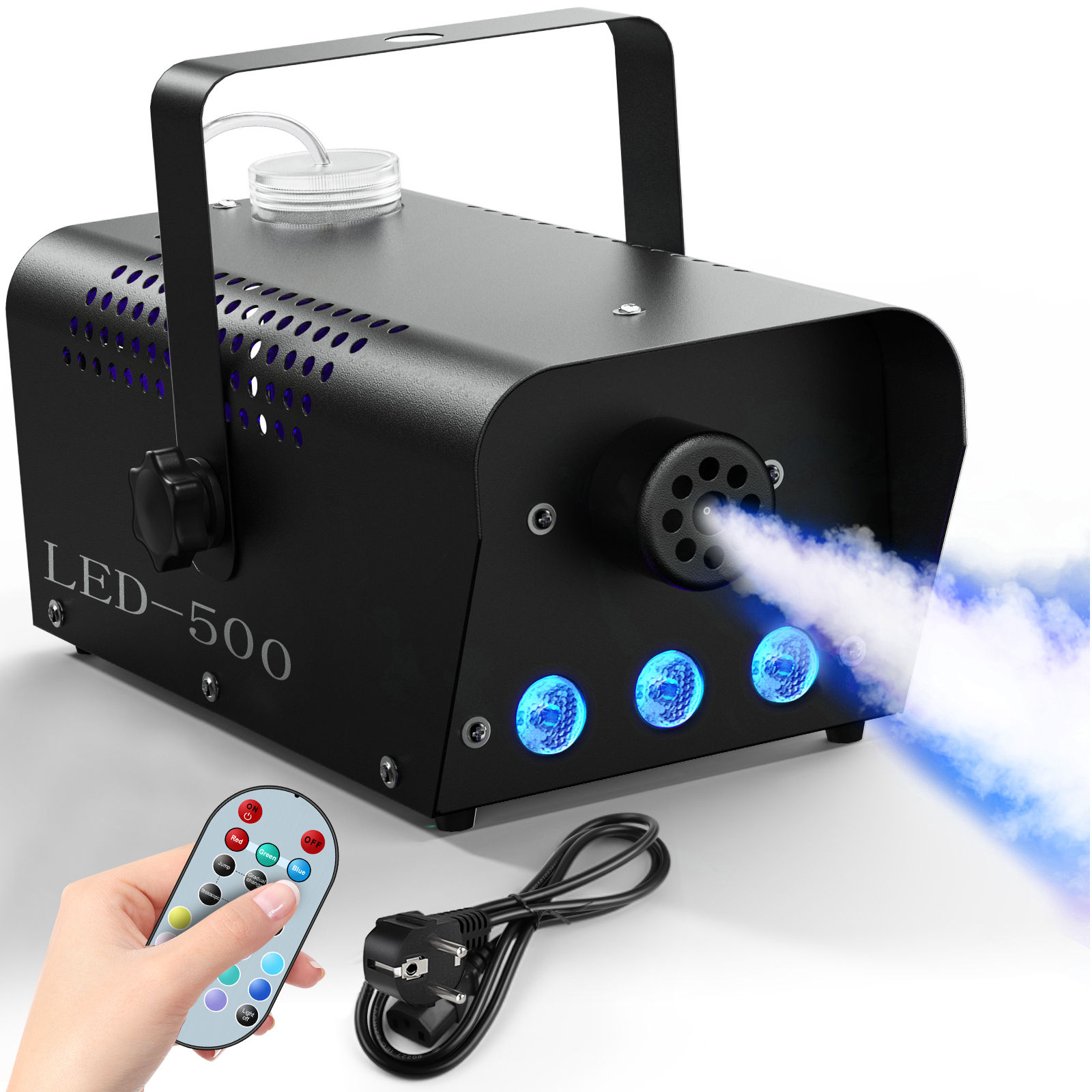

Model Number: 500W RGB LED Smoke Fog Machine

Nominal Voltage: 220V

Occasion: Professional Stage & DJ

Origin: Mainland China

Power (W): 500w

Power Source: DC

Style: DMX Stage Light

Voltage: 90-240V

Specifications:

Color: Black

Material:Aluminum alloy

Input voltage: AC110V/240V/ 50/60Hz

Rated power: 500W

Lamp beads: 3PCS three-in-one high-power lamp beads

Control protocol: 433MH

Effective control distance: about 15 meters

Control mode: remote control

Heating time: the first heating of the boot about 2-3 minutes, the subsequent cycle of heating about 20 seconds

Smoke time:17-22 seconds

Smoke Spraying Distance:2-3 meters

Oil pot capacity:260ml

Spraying time:about 1 hour

Protection grade:IP30

Working environment:-10℃-45℃

Product weight: 2kg

Product size: 27*18*18cm

Product Features:

1. Single remote control operation, smoke, lamp beads free switching.

2. Individual control of the LED color, individual control of smoke spraying.

3. The machine is equipped with a preheating indicator, preheating completed light up, you can start spraying smoke.

4. Equipped with double-layer temperature control protection, safer to use.

Safety precautions:

1. Attention: improper placement of battery may cause explosion. Replace only the same or equivalent types.

2. Warning on the battery of the controller: the used battery should not be discarded together with domestic garbage, but should be recycled at a separate collection point. Improper battery replacement may cause explosion. Keep new and old batteries out of the reach of children. If the battery compartment is not properly closed, please stop using it and put it out of the reach of children. Warning: the provided force controller contains button cells. If swallowed, it may cause serious internal burns or even death within 2 hours.

3. If you have any questions about whether the battery has been swallowed or introduced into other parts of the body, please contact the doctor immediately. Before cleaning the equipment, if it is connected to the power supply, please disconnect it. Do not use harsh cleaners. Use a clean cloth to remove dust or dirt from the product. We are not responsible for damage caused by improper handling, improper use or wear. We reserve the right to make technical modifications.

4. In order to protect the environment and / or human health, waste should be recycled in a responsible manner to support the sustainable reuse of resources. If you need to recycle second-hand electrical appliances, please go to the electrical appliances collection center or contact the dealer who purchased your products. They will ensure the ecological recycling of products.

Operation steps:

1. Open the bottle cap and add special smoke oil.

2. Plug in the power cord and turn on the switch.

3. Wait for 2-3 minutes, the red indicator light on the machine is on, and press the remote control to select smoking.

Pay special attention to:

1. This product is in a heated state during use. The high temperature of the machine is normal, please do not touch it with your hands.

2. This product should be used in a dry place. Any liquid should not penetrate into the inside of the machine (just in the oil bottle). If accidental infiltration occurs, turn off the power immediately and wait for the machine to dry before using it.

3. Keep away from and materials when using this product.

4. When the liquid in the oil bottle is about to run out, smoke fluid should be added immediately, otherwise continuing to work will damage the machine.

5. When the machine is working, please do not directly touch the smoke vent and the bottom of the machine with your hands. To prevent burns.

6. After use, it should be packaged and stored after it has cooled down.

7. Turn off the the machine when no one is present.

Other Precautions:

1. All sprayers will produce a small amount of mist or moisture around the nozzle, and occasionally a small amount of smoke will be emitted when it is stopped, which is a normal phenomenon.

2. The machine is with a working mode of heating and cooling cycle. Only when t
